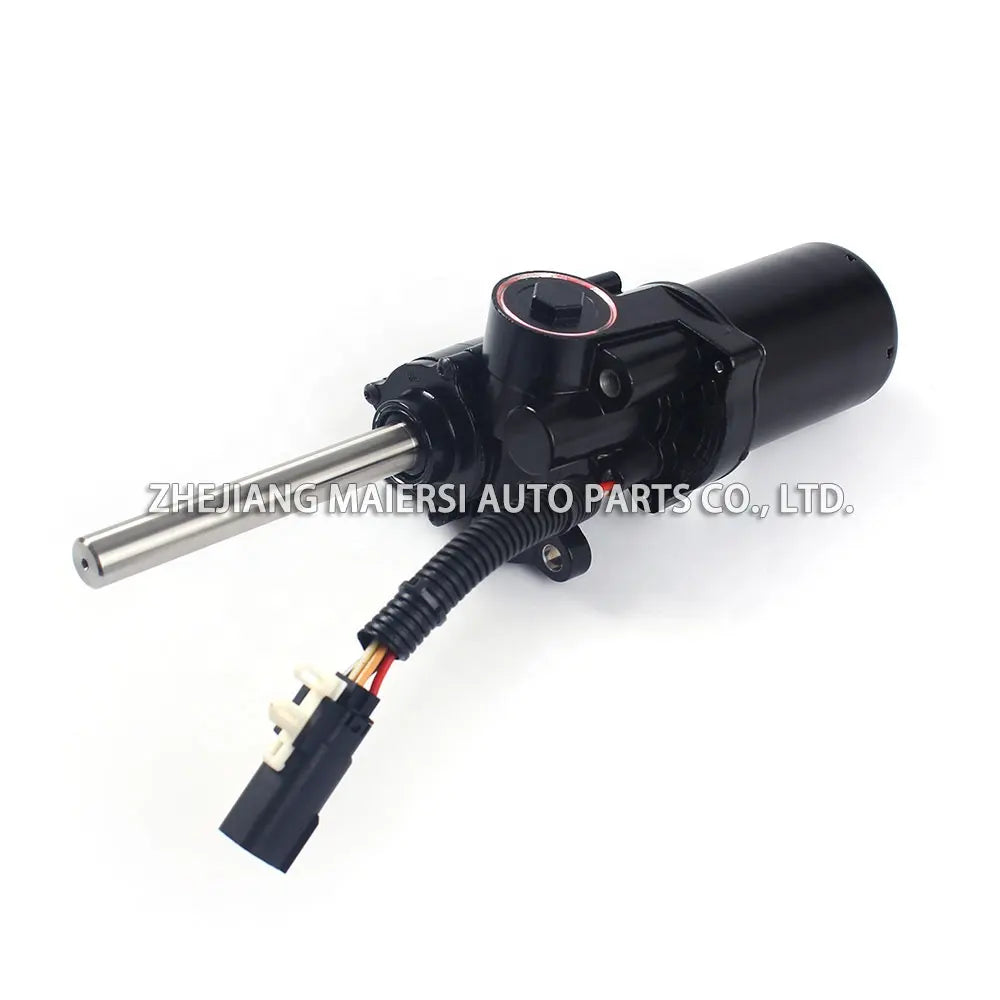

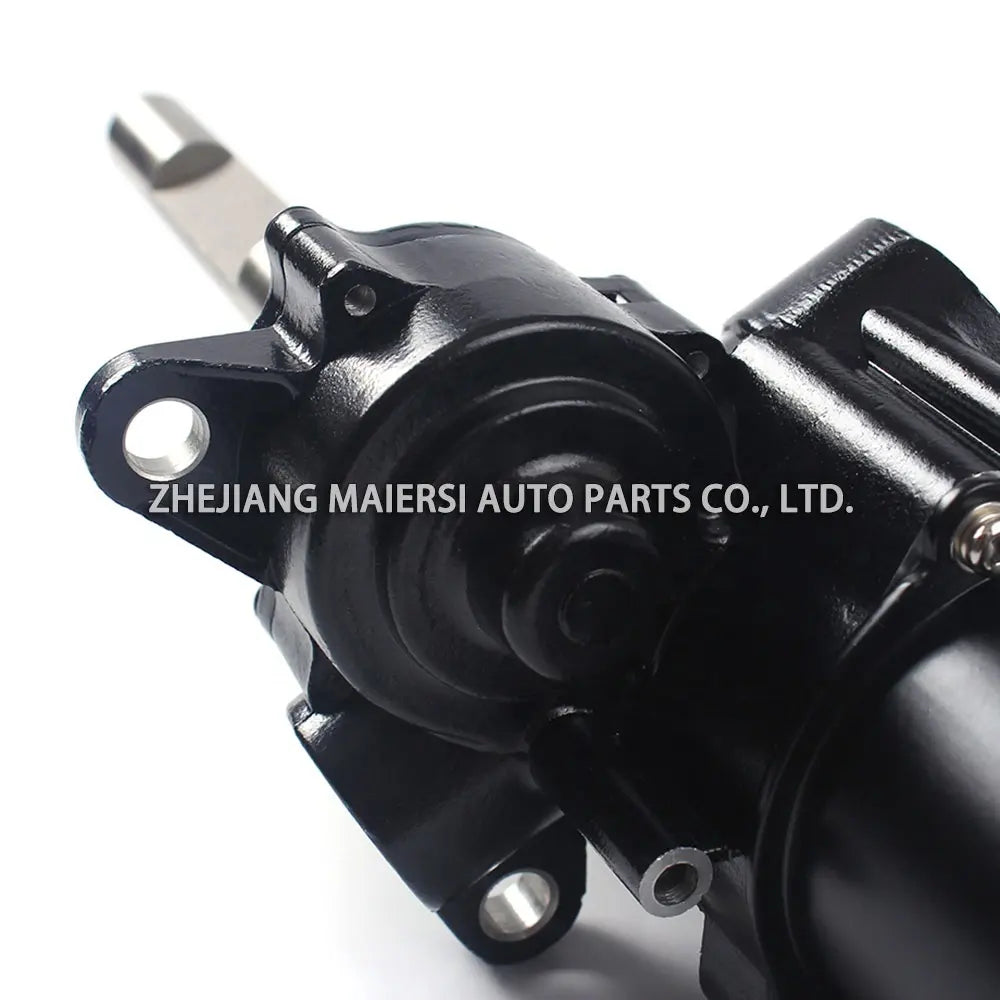

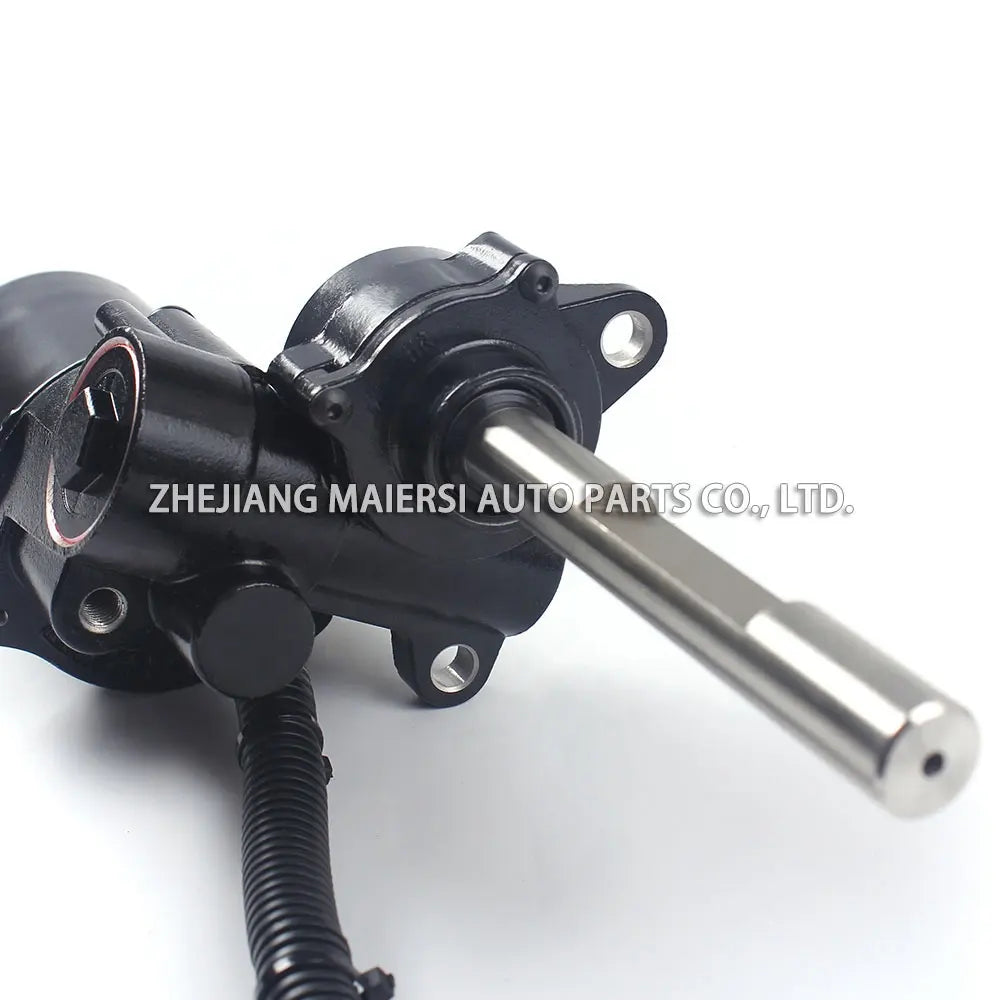

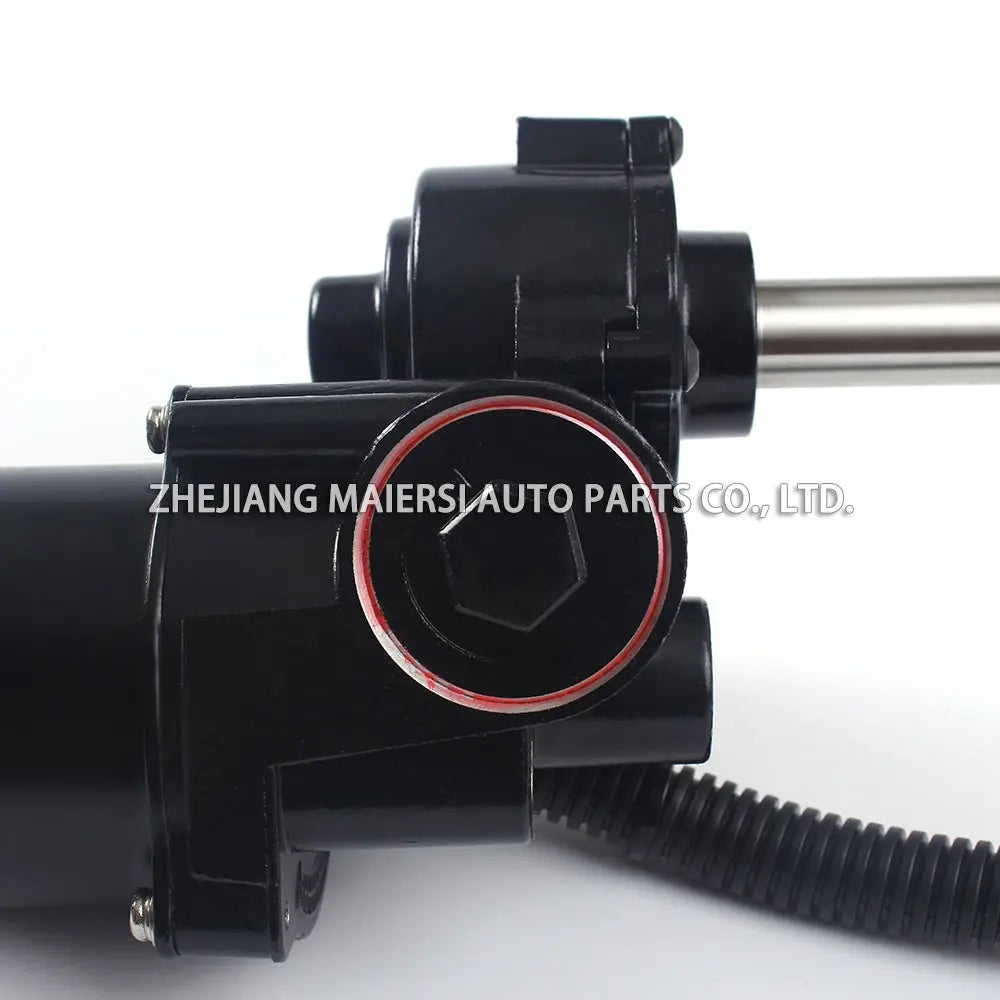

Number
|
Output shaft series
|
L1
|
L2
|
L3
|
Shaft diameter
|
Note
|
|
RBM5-30-M6-16.5
|
86 series
|
30
|
M6
|
16.5
|
16
|
DC 12V,80W
|
|
RBM5-110-33-36
|
166 series
|
110
|
33
|
36
|
16
|
DC 12V,80W
|
|
RBM5-110-38-37
|
166 series
|
110
|
38
|
37
|
16
|
DC 12V,80W
|
|
RBM5-110-43-26.5
|
166 series
|
110
|
43
|
26.5
|
16
|
DC 12V,80W
|
|
RBM5-120-43-28
|
176 series
|
120
|
43
|
28
|
16
|
DC 12V,80W
|
|
RBM5-120-53-27.5
|
176 series
|
120
|
53
|
27.5
|
16
|
DC 12V,80W
|
|
RBM5-135-30-34.5
|
191 series
|
135
|
30
|
34.5
|
16
|
DC 12V,80W
|
|
RBM5-148-34-30
|
204 series
|
148
|
34
|
30
|
16
|
DC 12V,80W
|
Test conditions
1. All tests must be carried out in the range of standard temperature and humidity (temperature: 20±65℃, humidity: 65±5%);
If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity(temperature:5-35 ℃, humidity: 45-75%).
If there is no dispute between the two parties, the test can be carried out under normal temperature and humidity(temperature:5-35 ℃, humidity: 45-75%).
2. high and low temperature test, according to low temperature -30℃, high temperature +80℃,humidity 75% test method and standard according “ to Implementation of Q /FSJS002-2018 Automotive Pedal Motor Technical Standard”.
Environmental characteristics
1. Operating temperature and humidity range: temperature: -20℃~ +65℃; Humidity: 45%~75%.
2. Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.
2. Storage temperature and humidity range: temperature: -10~40℃, humidity: 75%MAX.
|
Item
|
Value
|
|
Rated voltage
|
DC 12V
|
|
No-load current
|
≤ 2.5A
|
|
Rated power
|
80W
|
|
Frequency
|
50/60Hz
|
|
Noise
|
≤ 60 dB
|
|
Load 5Nm
|
Speed 14 ±1 RPM; Current ≤ 5.0A
|
|
Load 20Nm
|
Speed 8 ±1 RPM; Current ≤ 12A
|
|
Output shaft speed
|
15 RPM ± 1RPM
|
|
Braking torque
|
Torque ≥ 50 N.m; Current≤28A
|
|
|

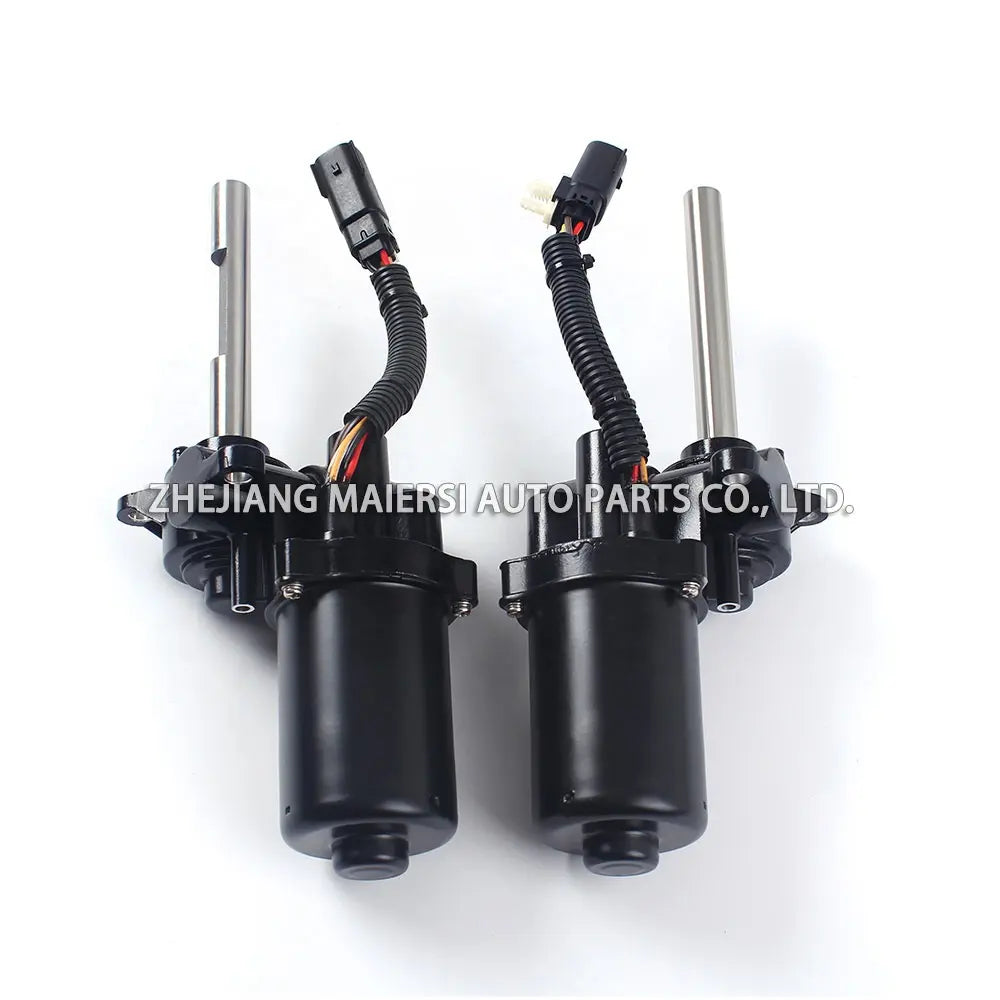

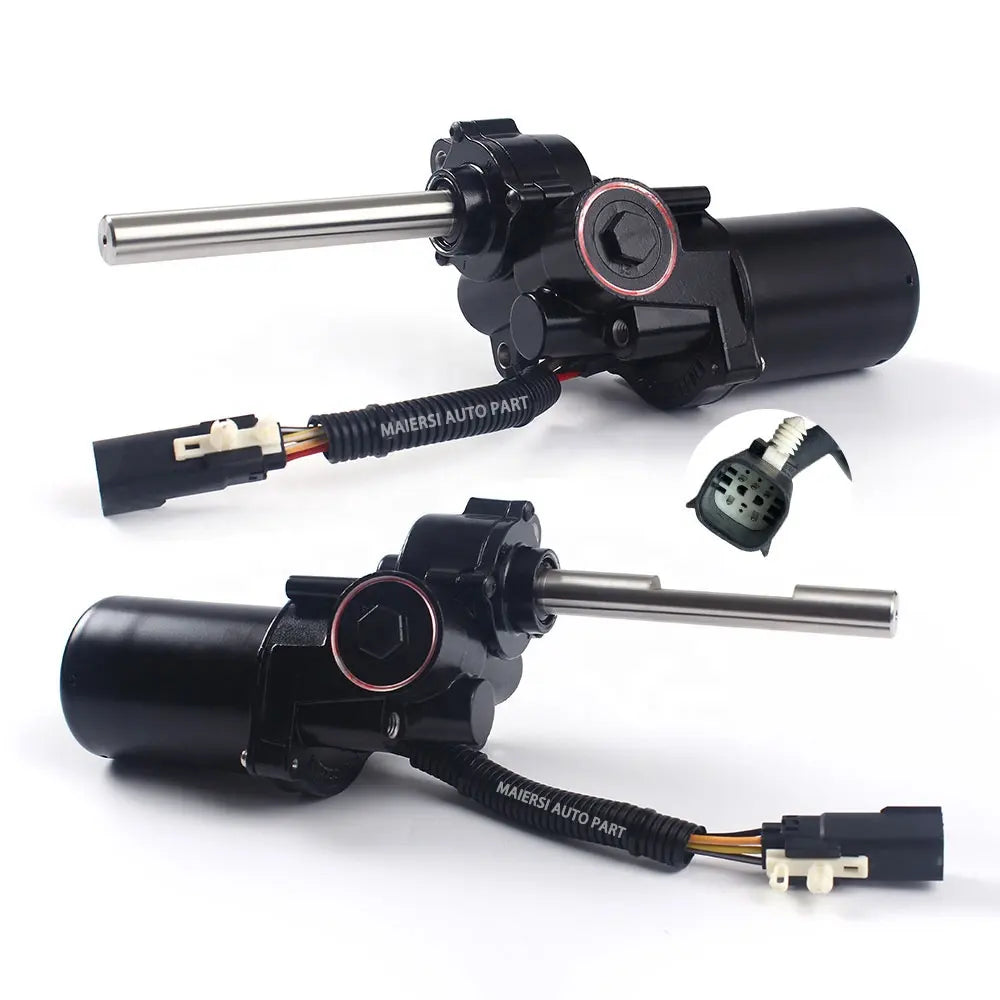

The motor on the left：counterclockwise
|
|
The motor on the right：clockwise
|
|
|
Insulation class
|
F class
|
|
Protection grade
|
IP67
|
